SIP-8IDU

The SIP-8IDU is an 8-channel sensor interface board. It allows you to safely connect your 3.3 or 5 volt microcontroller to both sourcing (PNP) and sinking (NPN) sensors running at up to 30 volts DC.

Features

Input Specifications

Channels: 8
Type: Sourcing / Sinking (Per-Channel Selectable)
Voltage: 0 - 30 VDC
Debounce: 1 ms

Output Specifications

Channels: 8
Type: Sinking
Voltage: 3.3 / 5 VDC
Pullup: Built-in Pullup to VCC

Power Input

Voltage: 3.3 / 5 VDC
Current (Maximum): 80 mA

Electrical Isolation

Isolation Voltage: 1 kVDC
Isolation Technology: RF Modulation

Weight

Board Only: 40 g
Board w/ DIN Mount: 90 g

Dimensions

Board Only: 70 mm x 72 mm x 15 mm
Board w/ DIN Mount: 72 mm x 87 mm x 37.5 mm

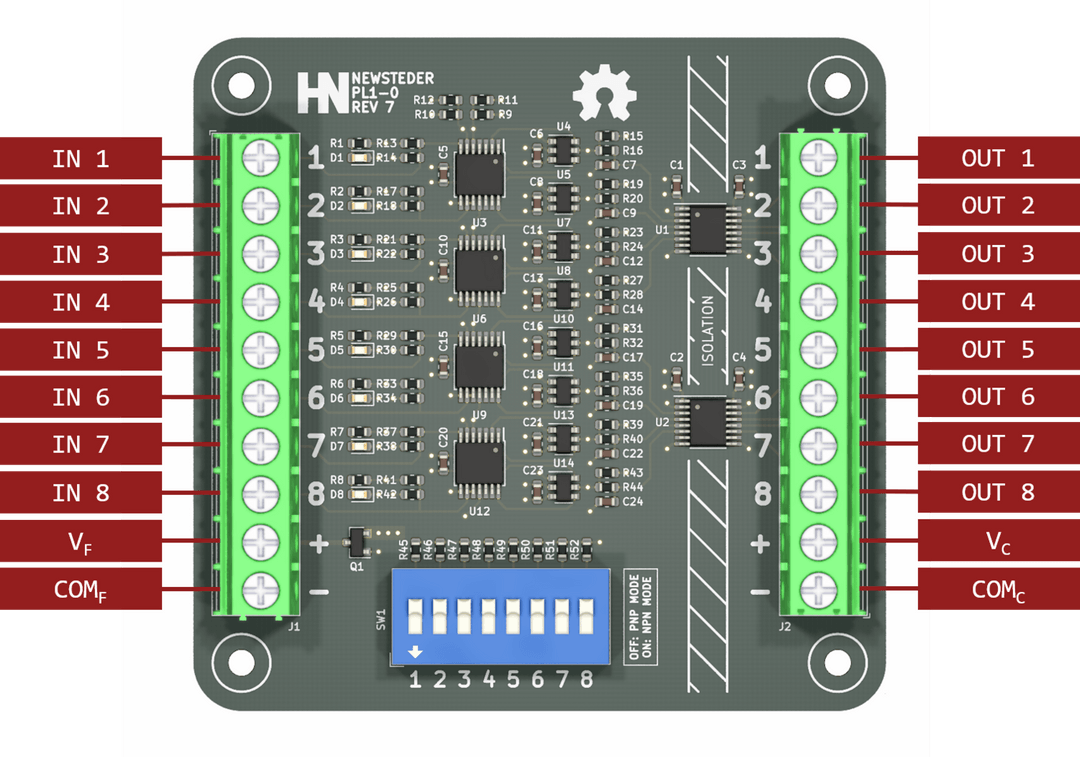

Pinout

Demonstration Video

Documentation

The latest documentation will always be found at the project's GitHub repository. Links to specific files are provided below for convenience.

Where To Buy

The PL1-0 can be purchased on mouser:
